Protect Your Property. Control Water. Stabilize the Grade.
Functional Concrete Artistry builds retaining walls and drainage improvements designed to manage elevation changes, direct runoff and protect outdoor areas from erosion and water-related damage.
Retaining and Drainage Solutions Built Around the Property
Retaining walls and drainage systems must work together. A wall may control soil, but without proper drainage, trapped water can increase pressure and shorten the life of the structure. We evaluate grade, runoff patterns, wall location, discharge points and surrounding hardscape before construction begins.
- Concrete retaining walls
- CMU retaining walls
- Timber retaining walls
- Seating and planter walls
- Area drains and catch basins
- French drains
- Solid drain piping
- Surface grading improvements
Retaining Walls, Waterproofing and Drainage Systems
These projects show below-grade waterproofing, French drain installation, retaining-wall drainage, crawlspace conditions and reinforced wall construction.

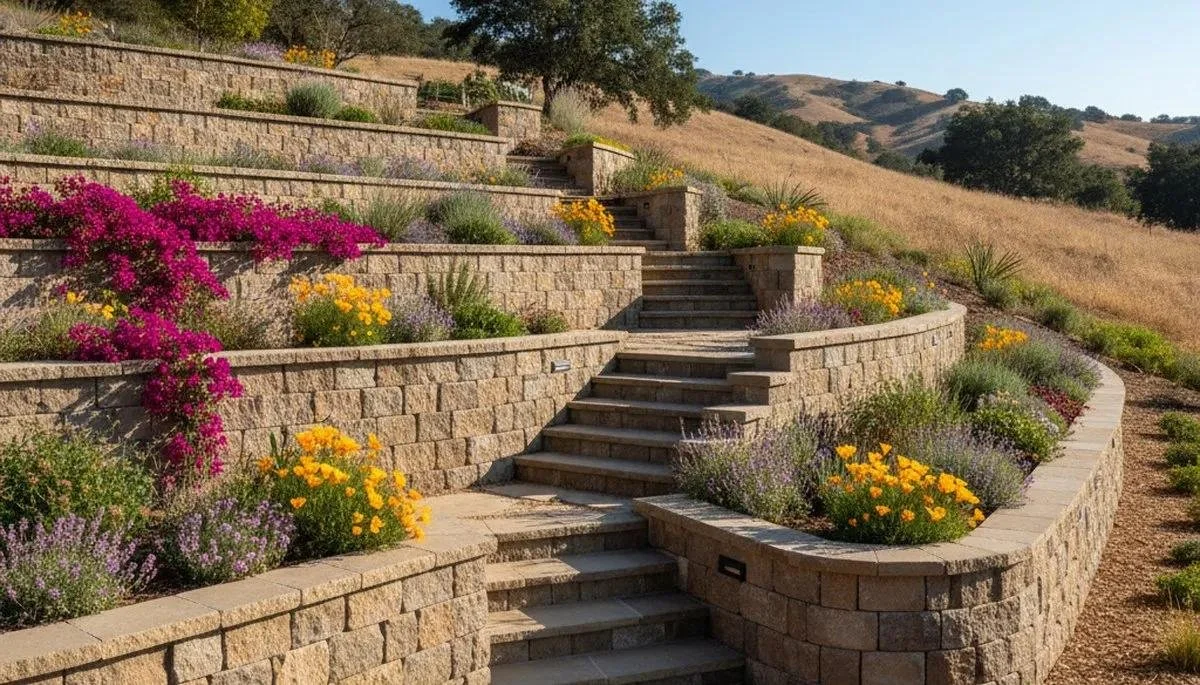

Wall Systems for Slopes, Yards and Outdoor Living Areas

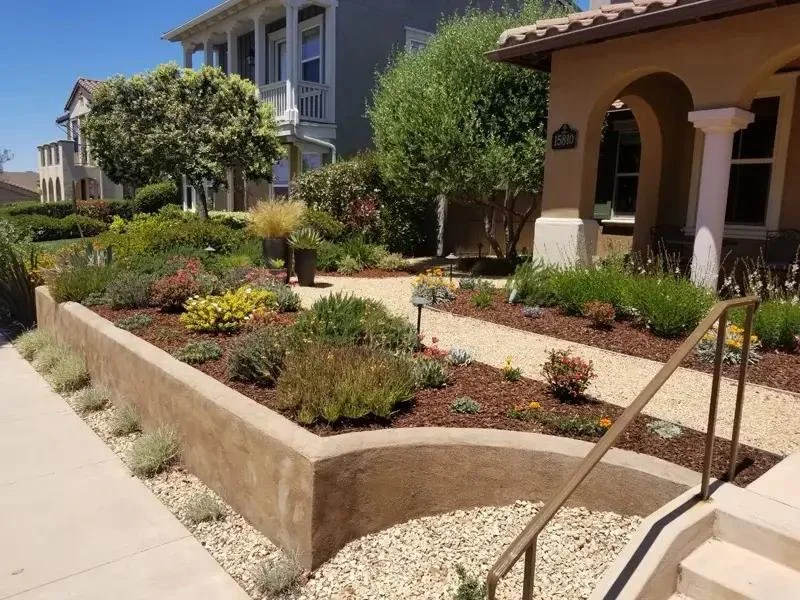

Concrete Retaining Walls
Reinforced concrete wall construction for durable grade retention and long-term performance.
CMU Block Walls
Reinforced masonry retaining walls with footing, steel, grout and drainage components as specified.
Timber Retaining Walls
Pressure-treated timber systems for selected residential landscape applications.
Planter & Seating Walls
Low retaining walls that define landscape zones and may also provide built-in seating.
Retaining Wall Replacement
Removal and replacement of deteriorated, leaning or improperly drained wall systems.
Engineered Wall Construction
Construction performed from approved plans when engineering and permits are required.
Control Water Around Foundations, Retaining Walls and Hardscape
Area Drains
Collection points installed in low areas to capture surface water before it accumulates.
French Drains
Subsurface drainage systems designed to collect and redirect water moving through soil.
Solid Drain Lines
Closed piping used to convey collected water toward an approved discharge location.

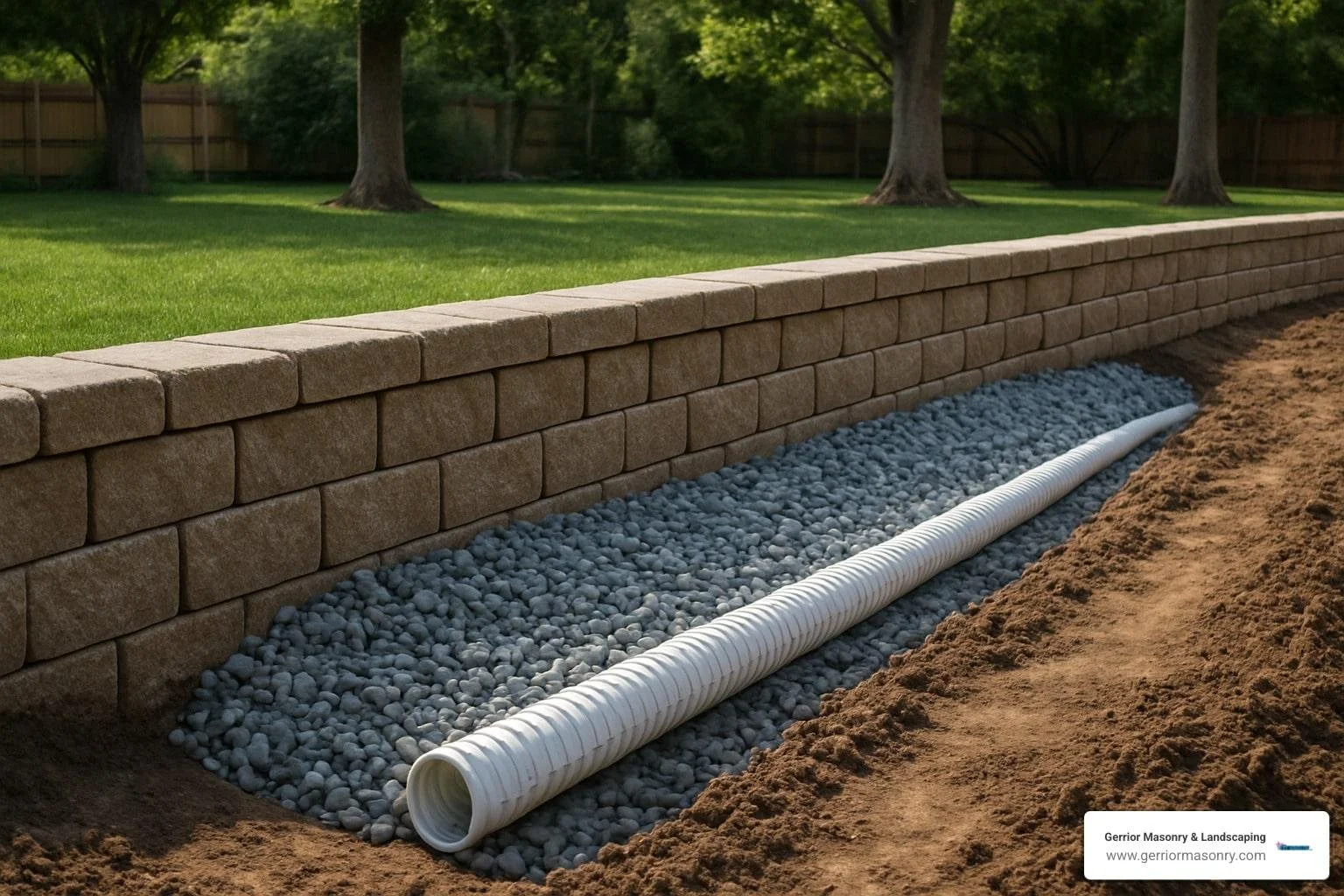

Retaining Wall & Foundation Drainage
Drain rock, filter fabric, perforated pipe, waterproofing membranes and outlets used to manage water and relieve hydrostatic pressure.
Surface Grading
Adjustment of exterior elevations to improve positive drainage and reduce ponding.
Foundation Waterproofing
Exterior below-grade coatings and membrane systems installed to help limit moisture intrusion.
Water Pressure Can Damage Walls and Surrounding Improvements
Poor drainage can contribute to soil erosion, settlement, standing water, saturated backfill and pressure behind retaining walls. Drainage details should be planned before the wall and surrounding concrete are completed.
- Reduce hydrostatic pressure
- Limit soil erosion
- Protect wall foundations
- Reduce standing water
- Improve hardscape drainage
- Direct runoff away from structures
A Complete Approach From Excavation to Final Drainage
1. Site Review
Review wall condition, grade change, runoff, access and available discharge points.
2. Layout & Planning
Establish wall location, height, drainage path and required construction details.
3. Excavation
Excavate for footing, wall, drain rock and pipe while protecting adjacent improvements.
4. Footing & Reinforcement
Install base, forms and reinforcement according to the approved project scope.
5. Wall & Drainage Installation
Construct the wall and install drainage materials before controlled backfill begins.
6. Backfill & Finish
Backfill, compact, restore affected areas and complete final cleanup.
Common Questions About Wall and Water-Control Projects
Does every retaining wall need drainage?
Most retaining walls require a way to relieve water pressure behind the wall. The exact system depends on the wall type, soil, height, location and approved design.
When does a retaining wall require engineering or a permit?
Requirements vary by jurisdiction, wall height, surcharge, slope conditions and proximity to structures or property lines. Engineering or permits may be required before work begins.
Can you replace a leaning retaining wall?
Yes, depending on access and site conditions. The failed wall generally must be removed so the footing, reinforcement, drainage and backfill can be reconstructed correctly.
What is the difference between a French drain and a solid drain line?
A French drain collects subsurface water through perforated pipe and drain rock. A solid line conveys collected water without allowing surrounding soil water to enter the pipe.
Can drainage be added to an existing yard?
Often yes. Available slope, outlet location, underground utilities, access and existing improvements must first be reviewed.
Can a drain connect to an existing system?
A tie-in may be possible when the existing system is accessible, properly sized, functional and discharges to an acceptable location.
Retaining Walls and Drainage Throughout San Diego County
Serving Poway, Rancho Bernardo, Scripps Ranch, Rancho Peñasquitos, Carmel Valley, La Jolla, Mission Hills, Chula Vista, Encinitas and surrounding San Diego communities.
Discuss Your Retaining Wall or Drainage Project
Tell us about the wall, slope, erosion, standing water or drainage concern at your property.
